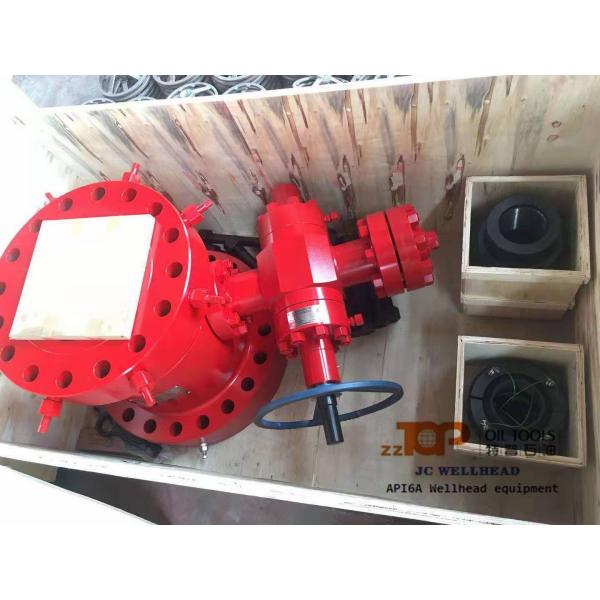

Class EE Oilfield U Temperature Tubing Head Spool

  • 1
  • 2

Brand Name : JC Wellhead

Model Number : Wellhead Tubing Head

Certification : API 6A

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 100 sets / month

Delivery Time : 30-45 days

Packaging Details : Polywood case for land, air, ocean shipment

Application : Oilfield Wellhead Equipment

Usage : Oil well drilling flow control

Material : Class EE

Production Level : PLS 3

Temperature Class : U

Standard : API 6A

Product name : Tubing head

Working pressure : 3000 psi

Top flange : 7-1/16" X 3000#

Bottom flange : 11" X 3000 #

Contact Now

API 6A Wellhead Equipment Tubing Head Tubing Spool With Tubing Hanger

The Tubing head is a wellh head tool that is designed to seal on the O.D of a casing or tubing string while raising, lowering or rotating. and connected with Christimas Tree, the buging head is designed with universal straight hold and conformed with API 6A Specification, which can be fitted with all types of single or double-string completion tubing hanger. The tubing head can be used on cavitation wells, erverse circulation operations, conventional drilling operations and as a circulation head.

Specification of tubing head body

No. Description
1 Body tubing head 11" x 3000 psi bottom flanged x 7-1/16" 3000 psi top flg (API Standart : PSL1, PR1, Class AA,Temp,U)

- 4 Ea Lock Down Screw
- 2 Ea Outlet gate valve 2-1/16"-3K.C/W Companion flg ,Bull Plug Needle Valve ,Pressure gauge
- 1 Ea Scondary Seal Nom 11" to 7" OD Csg ,C/W Bit Pilot
- 2 Ea Api Ring gasket R-53 Flg top
-16 Ea Bolt nut flaned bottom 1-3/8"-8UN C/W.Standart API ,Zink Plated
-12 Ea Bolt nut flaned bottom 1-1/8"-8UN C/W.Standart API ,Zink Plated
2
Body Adapter tubing 11" x 3000 psi bottom flanged x 7-1/16" 3000 psi top flg:

- 1 Ea API Ring Gasket Flnegd Top R-45.
-16 Ea Bolt Nut 1-3/8" - 8UNC Flanged bottom W/Standart API.
-12 Ea Bolt flanged top 1-1/8"-8UNC W/Standart API ,Zink Plated.
3
Body adapter tubing head 11" x 5000 psi bottom flanged x 7-1/16" 3000 psi top flg(API Standart:PSL1,PR1,Class AA,Temp.U)

- 1 Ea API Ring Gasket R-45 Flanged top
- 12 Ea Bolt Nut Flanged bottom 17/8"-8UNC W/Standart API Zink Plated.

Class EE Oilfield U Temperature Tubing Head Spool Class EE Oilfield U Temperature Tubing Head Spool

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

YCJC also engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.

The main well control and wellhead equipment as following:

*BOP : Taper Rubber Annular BOP, Spherical rubber Annular BOP, Single Ram BOP, Double Ram BOP
* Wellhead Equipment: X-mas tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, API Clamp, API Clamp Hub
* Wellhead valve: Gate valve, Choke valve, Check valve, Mud valve, and valve parts
* Wellhead adapter: Double studded adapter flange, spacer spool, riser spool, drilling spool, weldneck flange, union flange adapter
* Other wellhead equipment parts: Hammer union, Elbow, swivel joint, block cross, Block Tee,
* Oil well manifold: choke manifold, kill manifold, testing manifold

Welcome to contact us for more information!
